The Lithium Box Switcheroo

One of the many great features of The Lithium Box (TLB) is its' portability and economy when changing vehicles. We installed The Lithium Box Barista in to Scott's Amarok back in March 2022 and having now purchased a DMax, Scott's kept his investment and had us remove the system and ready his new ride for adventure. See the Amarok set up here.

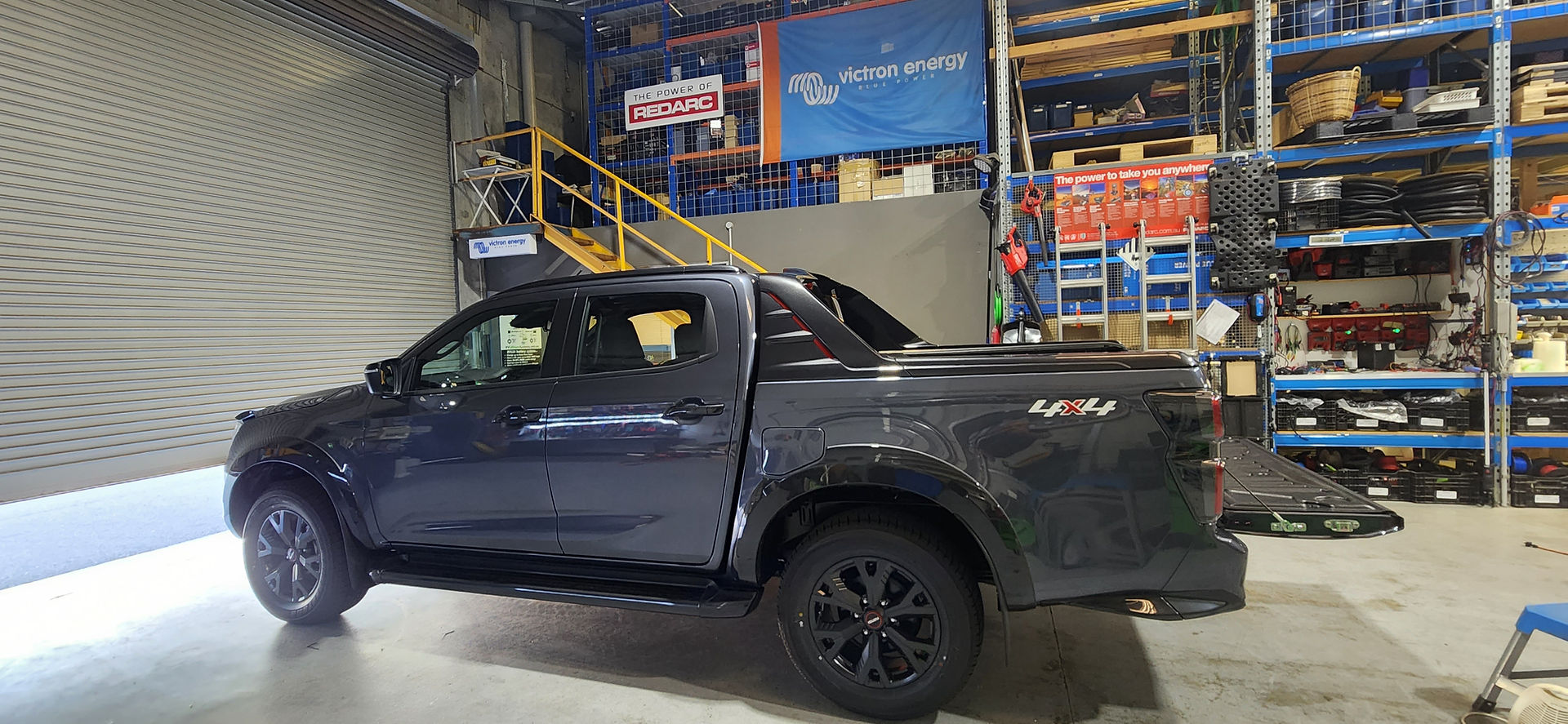

We decked out the DMax with Redarc's Tow-Pro Elite V3 Brake Controller and

a GME XRS-370 UHF Radio with thru dash, plug in microphone and GMEAE503 glass mount antenna on the windscreen.

In anticipation of a drawer system installation which Scott will mount TLB to later, we installed a TLB 50A Anderson Charge Lead with 1.5m Anderson Extension Lead to plug into TLB Barista.

The Lithium Box Barista features:

  • 100Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection

  • Victron BMV 712 Bluetooth Battery Meter Display. Read the battery meter from the convenience of your smart phone Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.

  • REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection

  • Victron Phoenix 1200VA Inverter. This will run a Coffee Pod Machine with Milk Frother.

  • Master Battery Switch

  • Internal Fusing and Output Short Circuit Protection

  • 1 x 240V Outlet Socket on front face

  • 275A Twin Load BCU 175A BCU for Inverter and 100A BCU for all 12v Output Sockets. Automatic Low Battery SOC or Voltage Disconnect of Inverter and accessory power sockets and automatic reconnect once the battery has received adequate charge.

  • 2 x 12V Cig Accessory Sockets

  • 1 x Engel / Waeco Fridge Sockets

  • 1 x Plug in dual USB plug (can be plugged into one of the Cig sockets)

  • 2 x 50 A Grey Anderson Plug Outputs on front of TLB (50a max each)

  • A Smart Alternator Ignition Wire Input or Loop Connection.

  • Weighs in at only 24kgs Measures 470 x 210 x 260mmH

The Lithium Box (TLB) can be moved to anywhere you have an Anderson Plug connection....your vehicle, solar panel, caravan or camper, whenever you like. Everything is contained in one neat, compact box made of durable 10mm High-Density Polyethylene with an easy mounting system for securing.

The Lithium Box stays with you.

Find a model of The Lithium Box to suit you!
