The Lithium Box 100/40 STUBBY enters our range, ideal for under seat and low height situations.
Kyle was keen for The Lithium Box to fit under a rear passenger seat, tucked neatly out of the way, leaving the tub of his GMC Z71 Silverado free to stow his gear and two Engel Fridges.
The Lithium Box 100/40 STUBBY features:
100Ah RV Lithium Systems Lithium (LiFePO4) Battery with Cell Balancing and Cell Protection
Victron Smart Shunt Bluetooth Battery Meter. Read the battery meter from the convenience of your smart phone. Read the battery meter from the convenience of your smart phone Displays the battery’s voltage, amps in or out, amp hours consumed, time to go until flat, and actual State of Charge (SOC) as a percentage.
REDARC BCDC 1240D Vehicle 40A DC to DC Charger with Blue 50A Anderson Plug Input, protected by cell protection and 40A MPPT Solar Charger with Red 50A Anderson Plug Input protected by cell protection
100A Manual Resettable Master Battery Switch
Internal Fusing and Output Short Circuit Protection
x2 50A Anderson Plug Output (100A Combined) with Automatic Low Battery State of Charge or Voltage Disconnect of accessory power sockets and Automatic Reconnect once the battery has received adequate charge.
A Victron Energy 240V IP65 Battery Charger connection for optional 240 volt charging (5 to 15A max).
A Smart Alternator Ignition Wire Input or Loop Connection
Weighs in at only 17.9kgs Measures 370 x 255 x 152mmH (Overall length includes Mounting Feet) Included with this installation was:
A Victron IP65 240V,15A BlueSmart Charger
Two Engel sockets and 50A Grey Anderson Plug Output in the tub

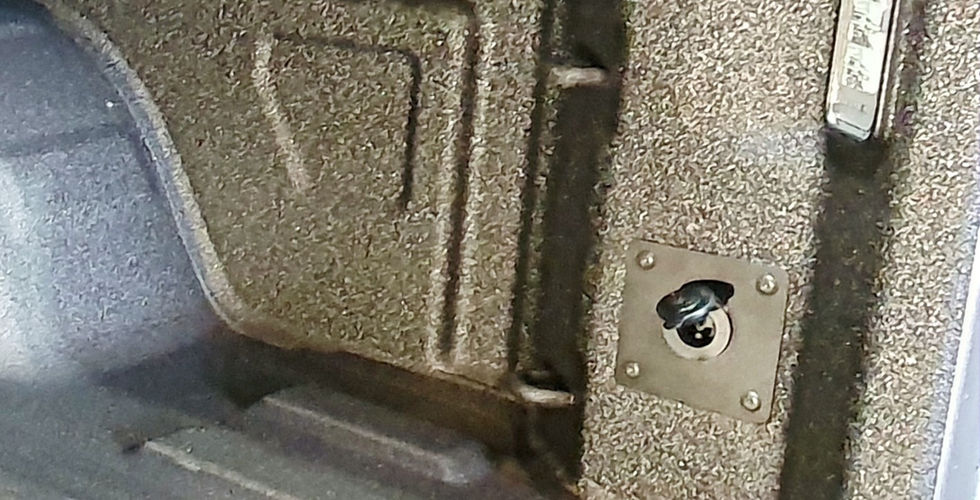

External Solar Red Anderson Plug Input near tow hitch
An Anderson Plug from the Start Battery, isolated by the ignition for towing a trailer.
For The Lithium Box solution, enquire at info@RvLithiumSystems.com.au
